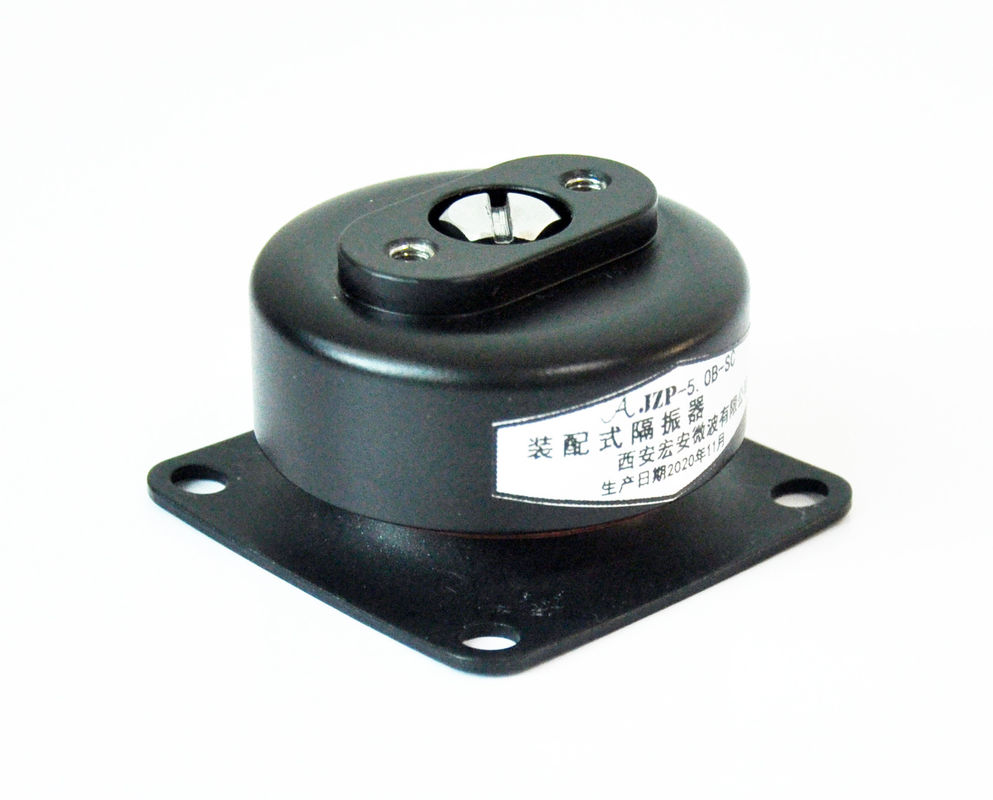

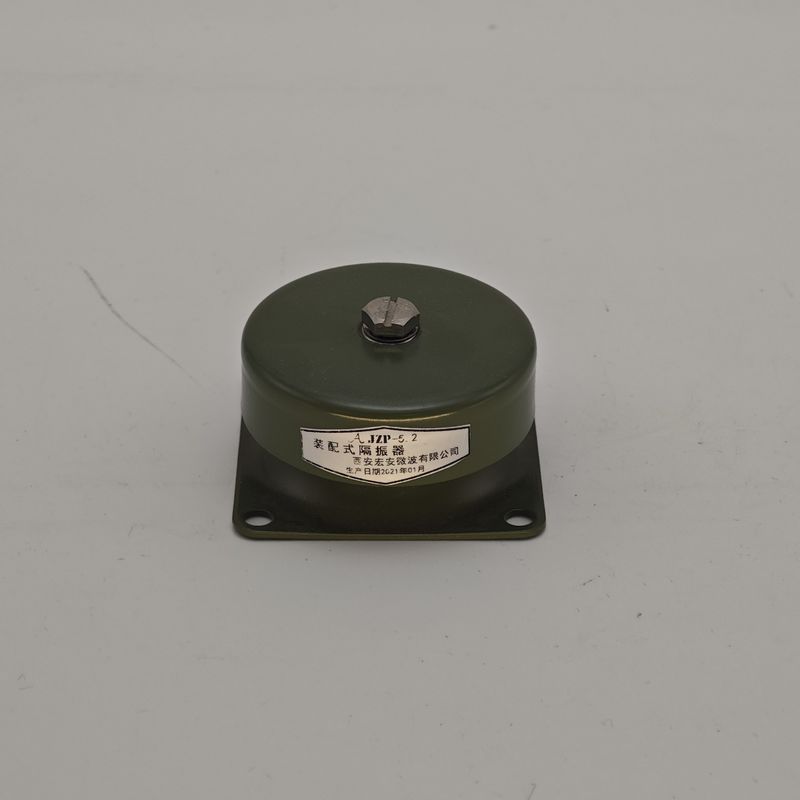

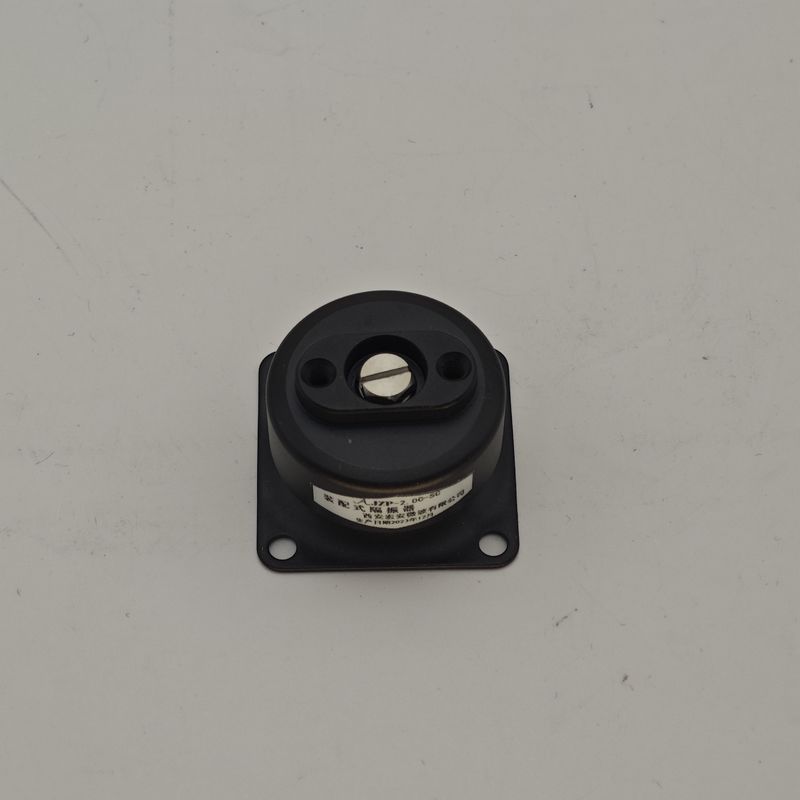

Name: JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-3.0B-SC
Availability: InStock

Evde > Ürünler > kauçuk amortisör >

JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions

3Kg Max Static Load Rubber Shock Absorber

5-50Hz Vibration Frequency Vibration Isolator

1 Year Warranty JZP Series Shock Absorber

Menşe yeri:

Çin

Marka adı:

Hoan

Model numarası:

JZP-3.0B-SC

Bizimle İletişim

Teklif Et

JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions

Ürün Ayrıntıları

Şekil:

Silindirik

Renk:

Siyah

Maksimum statik yük:

3kg

Titreşim Frekansı:

5-50HZ

Korozyon direnci:

Korozyona dirençli

Montaj Tipi:

Dişli

karakteristik:

geniş çalışma frekansı, uzun ömür

Makine Test Raporu:

Müsait değil

Doğal frekans:

7Hz-15Hz

Kolay kurulum:

Basit ve kurulumu kolay

Malzeme:

Lastik

Özellik:

Titreşim izolasyonu

Garanti:

1 yıl

Titreşim azaltma:

Yüksek

Vurgulamak:

3Kg Max Static Load Rubber Shock Absorber

5-50Hz Vibration Frequency Vibration Isolator

1 Year Warranty JZP Series Shock Absorber

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

İlişkili Ürünler

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

En İyi Fiyatı Alın

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

En İyi Fiyatı Alın

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

En İyi Fiyatı Alın

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

En İyi Fiyatı Alın

Bizimle İletişim

86-29-88292913

Şimdi iletişime geçin

Ürün Tanımı

JZP-3.0B-SC Engineered for Extreme Conditions - The Best Rubber Shock Absorber for Military Mining Vehicles

JZP-B-SC Series

Tenacious Protection, Fearless of Rough Terrain - The Outstanding Performance of Xi'an Hoan's JZP Series Under Severe Road Conditions

Not all vehicles travel on smooth highways. Military vehicles, emergency rescue vehicles, mining trucks, and geological exploration vehicles often operate in extreme conditions. Muddy roads, potholes, and gravel paths create high-intensity impacts that test equipment durability. The JZP Series On-Vehicle Modular Vibration Isolators are specifically engineered to protect equipment in these harsh environments.

Shock Isolation: Protection Beyond Conventional Vibration

Unlike steady vibration, shock is an instantaneous, high-energy excitation that can cause structural damage. The JZP Series is designed with shock isolation as a core performance feature. Its damping materials and structural design extend impact duration through large deformation, significantly reducing peak acceleration (G-force) transmitted to equipment. When a vehicle hits a deep pothole, the JZP Series acts like an "airbag" for the equipment, absorbing most damaging forces.

Durability and Environmental Adaptability

In harsh environments like sandstorms, rain, snow, and salt spray, vibration isolator durability is crucial. The JZP Series uses high-quality weather-resistant materials with advanced surface treatments (galvanizing and Dacromet coating) for excellent corrosion resistance and anti-aging properties. These isolators resist both mechanical stress and chemical/environmental erosion, offering a service life far exceeding ordinary products.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Performance

Vibration Performance Curve

Impact Performance Curve
