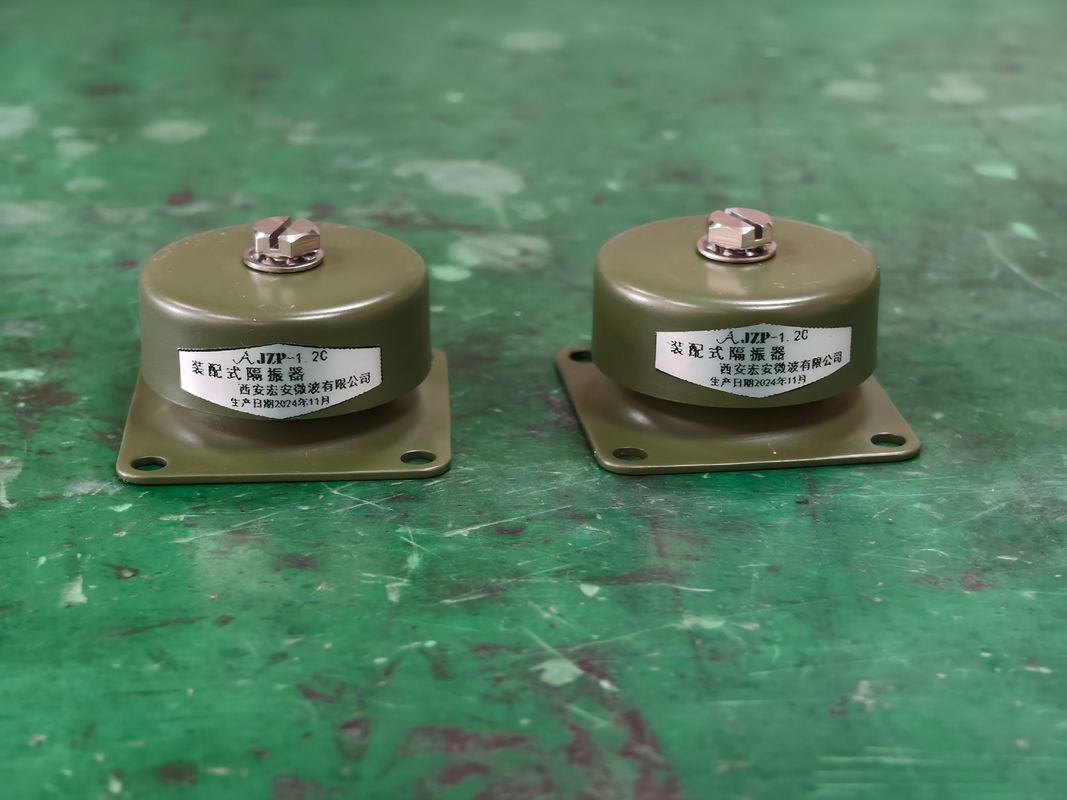

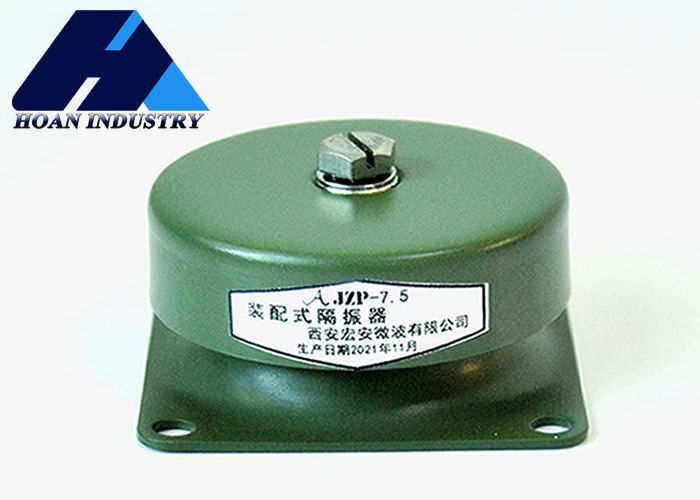

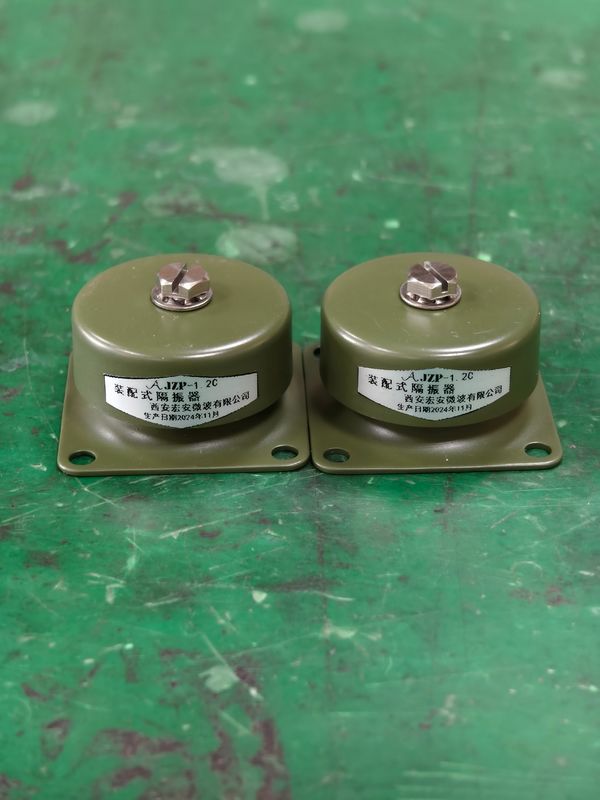

Name: JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-4.0B-SC
Availability: InStock

Evde > Ürünler > kauçuk amortisör >

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

M5 Mounting Holes Rubber Shock Absorber

30mm Height Vibration Isolator

High Pressure Resistance JZP Series

Menşe yeri:

Çin

Marka adı:

Hoan

Model numarası:

JZP-4.0B-SC

Bizimle İletişim

Teklif Et

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Ürün Ayrıntıları

karakteristik:

geniş çalışma frekansı, uzun ömür

Uzun ömür:

Uzun ömürlü

Menşei ülke:

Çin

Kullanım:

Şok ve titreşimi emer

Malzeme:

Lastik

Gürültü azaltma:

Gürültüyü azaltmada etkili

Makine Test Raporu:

Müsait değil

Sertlik:

Özelleştirilmiş

Basınç Dayanımı:

Yüksek

Yükseklik:

30 mm

Rezistans:

Kimyasal, Isı ve Hava Durumu

Titreşim izolasyon tipi:

Pasif

Maliyet:

Ekonomik

Montaj delikleri:

Vurgulamak:

M5 Mounting Holes Rubber Shock Absorber

30mm Height Vibration Isolator

High Pressure Resistance JZP Series

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Ödeme koşulları

Moneygram, Western Union, T/T, D/P, D/A, L/C

İlişkili Ürünler

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

En İyi Fiyatı Alın

JZP-5.0B-SC Kauçuk Şok Emici, 10Hz - 100Hz Frekans Aralığı, Araç Üzeri Verimlilik Doğrulaması için Yüksek Titreşim Direnci, Yeni Ürün 2025

En İyi Fiyatı Alın

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

En İyi Fiyatı Alın

JZP-3.5B-SC Modüler Kauçuk Şok emici, 5-6KG yük aralığı 1:2 sıkıştırma oranı ve 40g/11ms şok direnci

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

JZP-4.0B-SC The Flexible Adaptability of Rubber Shock Absorber for Vibration Isolation Solutions

JZP-B-SC Series

Customized Vibration Isolation Solutions

While standardized products meet most requirements, specialized equipment with unique specifications or extreme performance demands require customized protection. Xi'an Hoan Microwave Co., Ltd. designed the JZP Series with powerful customization capabilities to deliver tailored vibration isolation solutions.

From Product to Solution

Xi'an Hoan provides comprehensive consulting services, analyzing equipment specifications including weight, dimensions, center of gravity, sensitive frequency bands, and operating environment. Engineers optimize selections from the JZP Series or modify existing structures with adjustments to:

Mounting hole positions
Interface types
Load-bearing stiffness

Specialized Applications

For precision instruments (electron microscopes, spectral analyzers) or heavy equipment (large battery packs, hydraulic units), Xi'an Hoan develops specialized models featuring:

Custom damping material formulations
Multi-stage vibration isolation structures
Active/semi-active control technologies

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	Same as above
JZP-2.0B-SC	2.0	Same as above
JZP-2.5B-SC	2.5	Same as above
JZP-3.0B-SC	3.0	Same as above
JZP-3.5B-SC	3.5	Same as above
JZP-4.0B-SC	4.0	Same as above
JZP-5.0B-SC	5.0	Same as above
JZP-5.5B-SC	5.5	Same as above
JZP-6.0B-SC	6.0	Same as above

Performance Curves

Vibration

Impact
