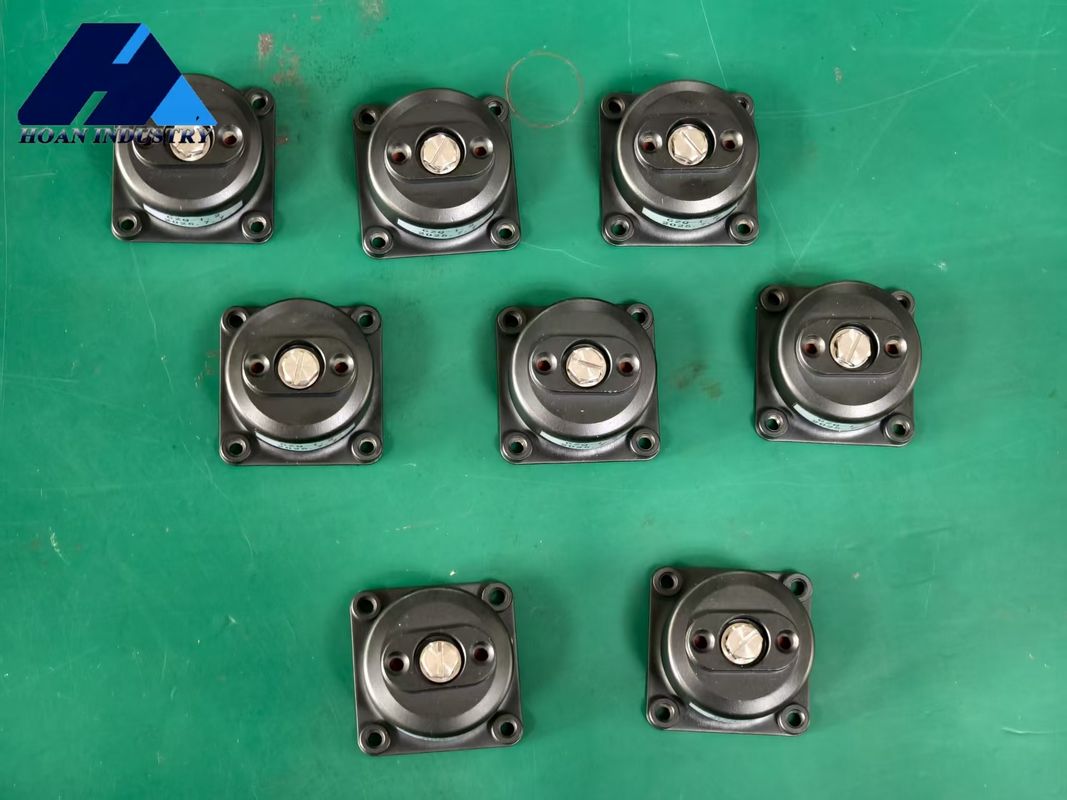

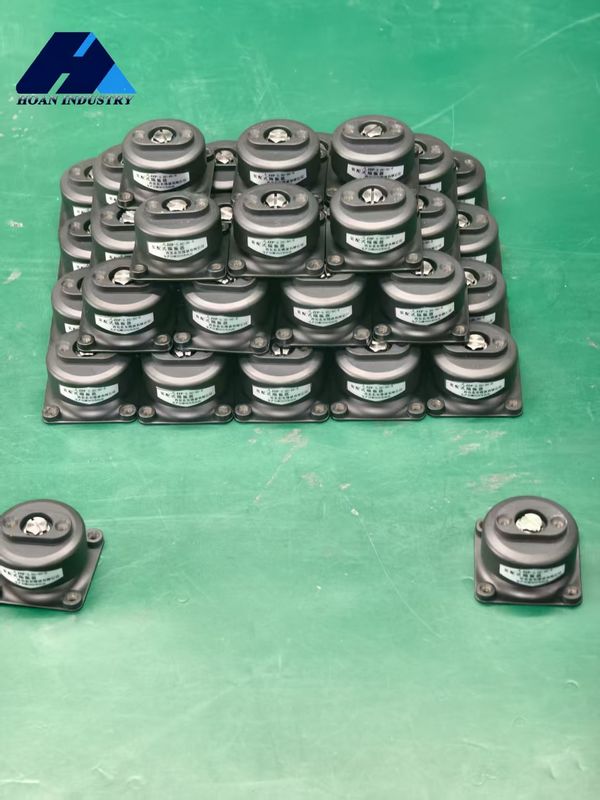

Name: JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.5B-SC
Availability: InStock

Evde > Ürünler > kauçuk amortisör >

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Vibration Frequency 5-50Hz Rubber Shock Absorber

Max Static Load 5.5Kg Vibration Isolator

3-24 Inches Length JZP Series

Menşe yeri:

Çin

Marka adı:

Hoan

Model numarası:

JZP-5.5B-SC

Bizimle İletişim

Teklif Et

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Ürün Ayrıntıları

Hava Şartlarına Direnç:

Harika

Titreşim Frekansı:

5-50HZ

Kurulum:

Kurulumu Kolay

Başvuru:

Otomobiller, Makineler, Motorlar

Uygulanabilir Endüstriler:

Enerji ve Madencilik

Rezistans:

Kimyasal, Isı ve Hava Durumu

İzolasyon frekansı:

5Hz

Özellikler:

Elastik iyi, aşınma direnci

Uzunluk:

3-24 inç

Esneklik:

Esnek

Özellik:

Titreşim izolasyonu

Maksimum statik yük:

5.5kg

Vurgulamak:

Vibration Frequency 5-50Hz Rubber Shock Absorber

Max Static Load 5.5Kg Vibration Isolator

3-24 Inches Length JZP Series

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

İlişkili Ürünler

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

En İyi Fiyatı Alın

JZP-5.0B-SC Kauçuk Şok Emici, 10Hz - 100Hz Frekans Aralığı, Araç Üzeri Verimlilik Doğrulaması için Yüksek Titreşim Direnci, Yeni Ürün 2025

En İyi Fiyatı Alın

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

En İyi Fiyatı Alın

JZP-3.5B-SC Modüler Kauçuk Şok emici, 5-6KG yük aralığı 1:2 sıkıştırma oranı ve 40g/11ms şok direnci

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

JZP-5.5B-SC Rubber Shock Absorbers for Easy Installation and Maintenance with User-Centric Design

JZP-B-SC Series

Easy Installation, Hassle-Free Maintenance - User-Centric Design of the JZP Series Vibration Isolators

A high-quality engineering product should not only deliver outstanding performance but also offer a superior user experience. When designing the JZP Series On-Vehicle Modular Vibration Isolators, Xi'an Hoan Microwave Co., Ltd. fully considered the convenience of installation, commissioning, and maintenance, striving to make advanced technology simple and user-friendly.

The Essence of "Modular" Design

The "modular" feature of the JZP Series means it typically comes as a complete, standardized unit. Users do not need to mix damping materials on-site or perform complex structural assembly. In most cases, only common tools and bolt connections are required to firmly mount equipment on the vehicle base via the JZP Vibration Isolators. This significantly lowers the technical threshold and time cost of installation, while avoiding performance degradation caused by improper installation.

Visualization and Maintainability

Many products in the JZP Series are designed with intuitive markings and error-proof structures to ensure correct installation orientation. Their structure is usually easy to inspect, allowing users to visually check for obvious aging or damage to elastic components. For applications requiring regular inspection or replacement, the modular design enables quick and cost-effective replacement of individual vibration isolators--no need to disassemble the entire equipment.

Dimension Parameter Table

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameter Table

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Curve of JZP-B-SC Series

Vibration

Impact
