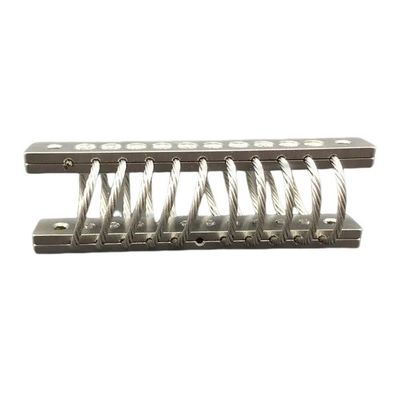

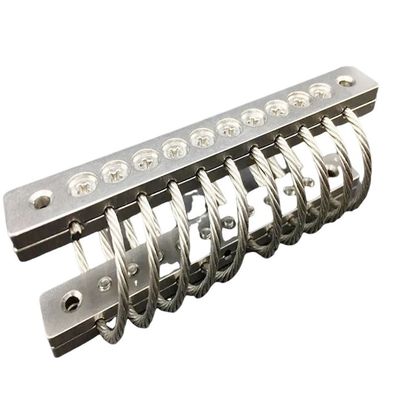

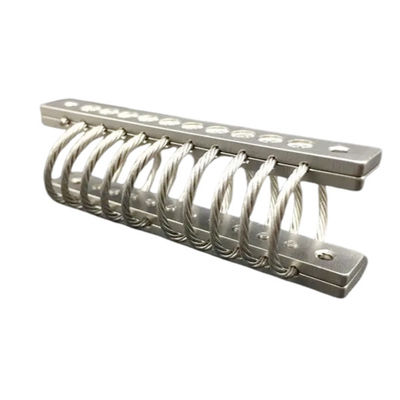

Name: JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0958A-138A
Availability: InStock

Evde > Ürünler > Tel ip titreşim yalıtıcısı >

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments

Corrosion-Resistant Wire Rope Vibration Isolator

Harsh Environments Wire Rope Vibration Isolator

Menşe yeri:

Çin

Marka adı:

Hoan

Sertifika:

ISO9001:2015

Model numarası:

JGX-0958A-138A

Bizimle İletişim

Teklif Et

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments

Ürün Ayrıntıları

Halat Yapımı:

7x19

Garanti sonrası servis:

Online Destek

tel halat malzemesi:

Galvanizli çelik

İzolasyon Frekans Aralığı:

5Hz - 100Hz

Türü:

Gürültü ve Zayıflama

Genel Genişlik:

50 mm

Çalışma sıcaklığı:

-40°C -80°C

Uygulanabilir endüstriler:

Yapı Malzemesi Mağazaları, Enerji ve Madencilik

Installation Type:

Horizontal/Vertical

Montaj Dişi Boyutu:

yay sabiti:

50N/mm

Yapı:

Örgülü Tel Halat

Görev:

Anti şok

Sıcaklık aralığı:

-40°F ila 200°F

Ürün sertifikası:

ISO 9001

Vurgulamak:

Corrosion-Resistant Wire Rope Vibration Isolator

Harsh Environments Wire Rope Vibration Isolator

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Ödeme koşulları

MoneyGram, Western Union, T/T, D/P, D/A, L/C

İlişkili Ürünler

Video

JGX-0400A-31.5A Kablo Halat Titreme İzolatörü, ekipmanınızı titreşimden ve şoktan korumak için dikey montaj

En İyi Fiyatı Alın

Video

Stainless Steel Wire Rope Vibration Isolator for Aerial and Communication Su geçirmez ve dayanıklılık JGX-0400-31.5A

En İyi Fiyatı Alın

JGX-0648D-56A Çeşitli Cihazlarda Optimal Performans için Dikkatlice Tasarlanmış Tel İpi titreşim izolatörü

En İyi Fiyatı Alın

JGX-0648A-45A Otomotiv motorları için etkili titreşim azaltıcı kablo ipi titreşim izolatörü

En İyi Fiyatı Alın

Bizimle İletişim

86-29-88292913

Şimdi iletişime geçin

Ürün Tanımı

JGX-0958A Series

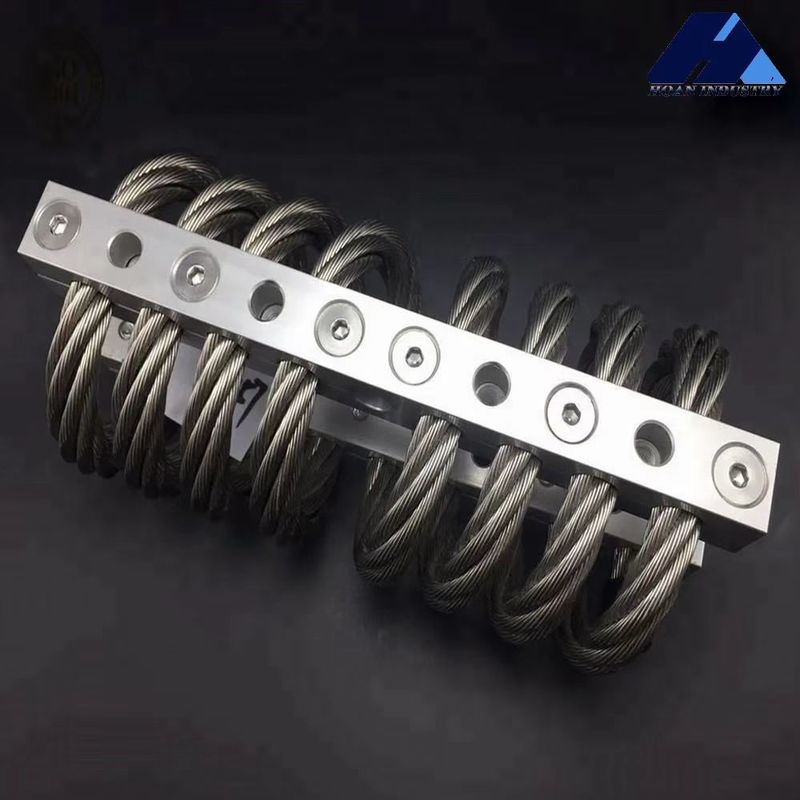

The JGX - 0958A steel wire rope vibration isolator adopts a spiral winding structure of multi - strand stainless steel wire ropes, combining rigidity and elasticity with excellent damping performance. It has a wide operating temperature range (-40℃～+120℃), is corrosion - resistant and aging - resistant, and can adapt to harsh environments such as humidity and salt spray. The static load range of the product is 5～50kg, and the natural frequency is as low as below 10Hz, which can effectively isolate high - frequency vibrations. The unique non - metallic design avoids electromagnetic interference, making it particularly suitable for the vibration isolation protection of precision electronic equipment.

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments 0

Static-Load Curve

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments 1

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	149	34.0	366	179
2	JGX-0958A-138A	138	37.1	320	152
3	JGX-0958A-108A	108	40.1	242	110
4	JGX-0958A-99A	99	44.7	205	91
5	JGX-0958A-95A	95	49.8	182	79
6	JGX-0958A-54A	54	66.0	86	33
7	JGX-0958A-43A	43	68.1	67	26

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments 2

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	120.3	47.8	236	103
2	JGX-0958A-138A	111.2	51.8	208	88
3	JGX-0958A-108A	90.8	55.9	159	65
4	JGX-0958A-99A	84.0	63.0	137	54
5	JGX-0958A-95A	79.4	71.1	123	47
6	JGX-0958A-54A	47.7	91.9	60	21
7	JGX-0958A-43A	38	95	47	16

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments 3

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	93.1	36.1	130	130
2	JGX-0958A-138A	88.5	39.1	112	112
3	JGX-0958A-108A	68.1	42.2	77	77
4	JGX-0958A-99A	63.6	47.2	65	65
5	JGX-0958A-95A	61.3	52.8	60	60
6	JGX-0958A-54A	27.2	68.1	27	27
7	JGX-0958A-43A	20.4	71.7	19	19

* The material of the wire rope splint *

Stainless Steel or Aluminum can be selected

* Surface treatment of aluminum alloy plywood *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
