Name: JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-1.4
Availability: InStock

Evde > Ürünler > Bahış yalıtımı >

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

32mm Overall Width Spring Isolator

1 Year Warranty Vibration Isolator

High Resilience Friction Damping Isolator

Menşe yeri:

ÇİN

Marka adı:

Hoan

Model numarası:

JMZ-T1-1.4

Bizimle İletişim

Teklif Et

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Ürün Ayrıntıları

Kullanılabilirlik:

Yaygın olarak mevcut

Garanti hizmetinden sonra:

Çevrimiçi Destek

Ürün Anahtar Kelimeleri:

Sürtünme önleyici izolatörler

Maliyet:

Kullanılan yay boyutuna ve türüne bağlı olarak değişir

Dayanıklılık:

Uzun ömürlü

Makine Testi Raporu:

Müsait değil

Genel genişlik:

32 mm

Tip:

Titreşim İzolatörü

Garanti:

1 yıl

Esneklik:

Yüksek

Pazarlama türü:

Sıcak Ürün 2025

Malzeme:

Yay çeliği

Liman:

Xi'an veya belirtildi

Sertifikalar:

UL listeli, RoHS uyumlu

Vurgulamak:

32mm Overall Width Spring Isolator

1 Year Warranty Vibration Isolator

High Resilience Friction Damping Isolator

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Ödeme koşulları

D/P, Moneygram, Western Union, T/T, D/A, L/C

İlişkili Ürünler

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

En İyi Fiyatı Alın

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

En İyi Fiyatı Alın

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

En İyi Fiyatı Alın

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

En İyi Fiyatı Alın

Bizimle İletişim

86-29-88292913

Şimdi iletişime geçin

Ürün Tanımı

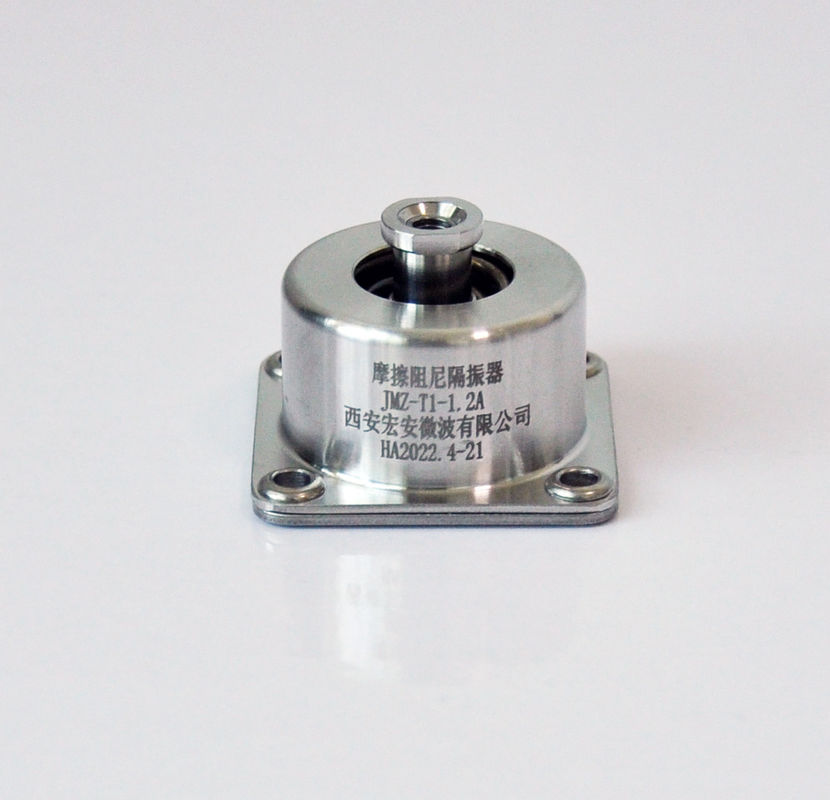

JMZ-T1-1.4 Vibration Isolator for Industrial Environments

JMZ-T Series: Robust Vibration Isolation Solution

The JMZ-T Series friction damping vibration isolators from Xi'an Hoan Microwave are engineered for demanding industrial applications where standard laboratory-grade isolation systems fail. Designed to withstand harsh conditions including temperature extremes, contaminants, and mechanical shocks while maintaining precise vibration isolation performance.

Key Features

Environmental Resistance: High-strength aluminum alloy/stainless steel construction with anti-corrosion surface treatments ensures durability in humid and chemically aggressive environments.
Anti-Contamination Design: Multi-layer sealing system protects core mechanisms from dust, oil mist, and other industrial contaminants.
Impact Protection: Reinforced structure with displacement limiters safeguards both the isolator and protected equipment from shock loads.
Temperature Stability: Consistent performance across extreme temperatures (-65°C to +120°C) without need for seasonal recalibration.

Structural Diagram

Technical Specifications

Model	Max Load (PZ-Direction)	PZ Displacement	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Freq. (Hz)	Temp. Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Performance Characteristics

Vibration Isolation

Impact Resistance
