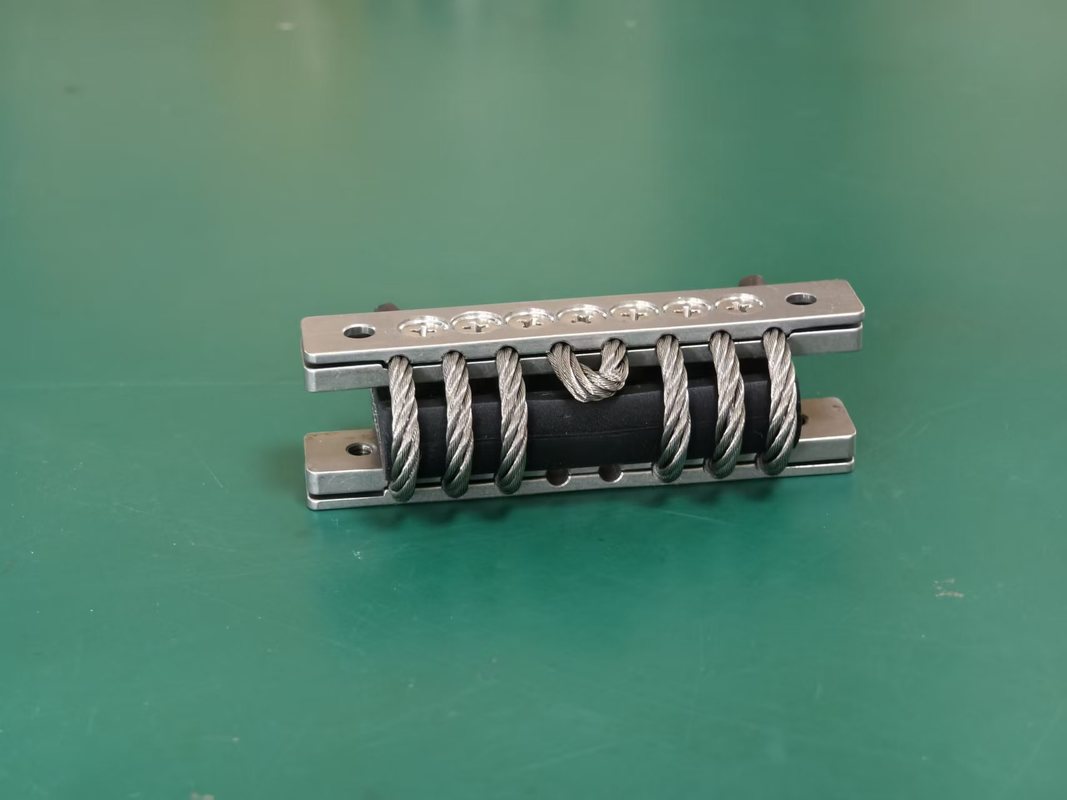

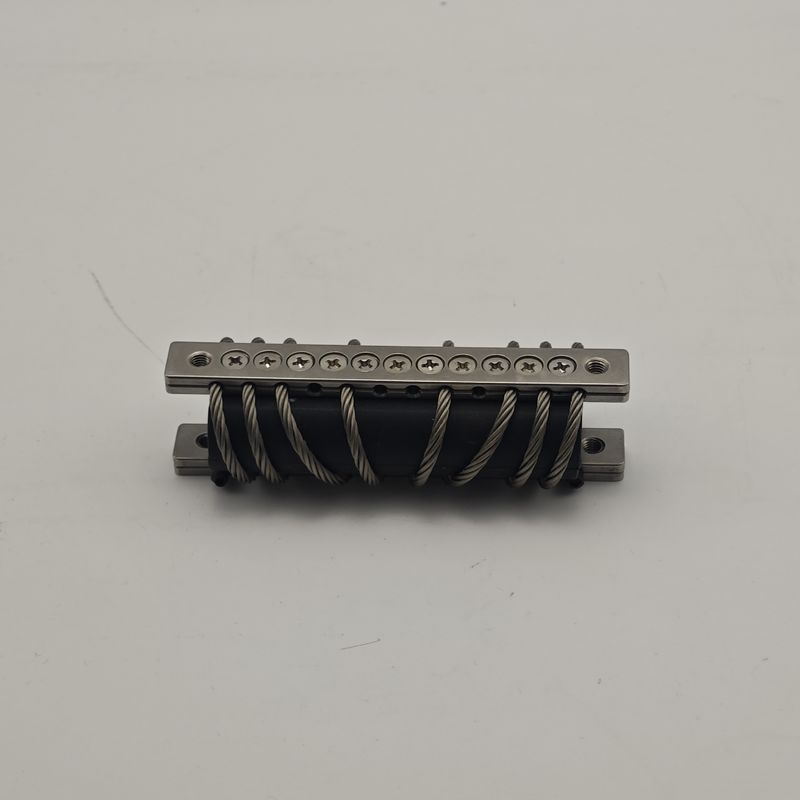

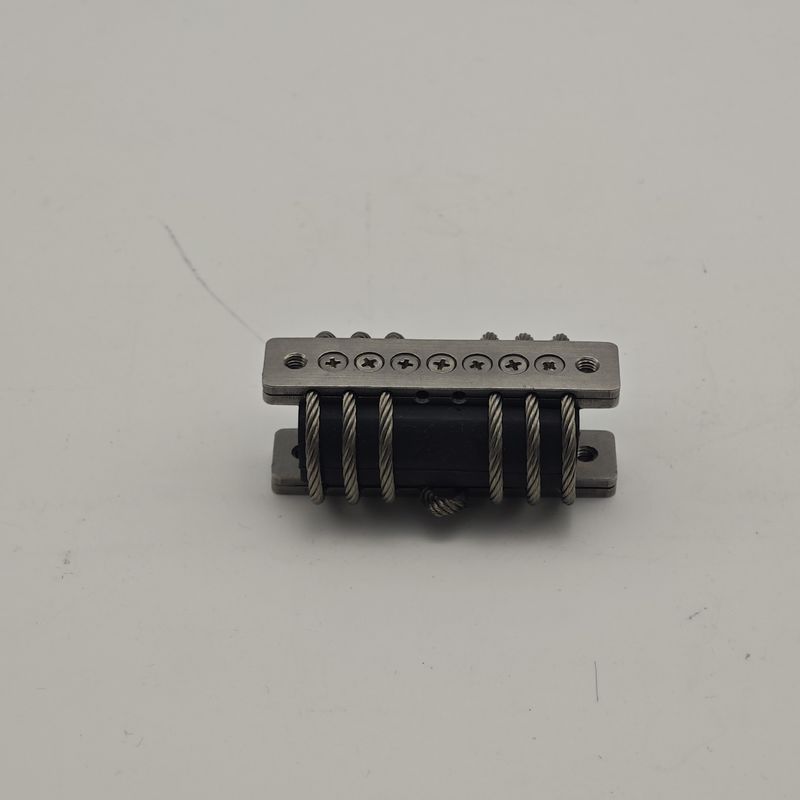

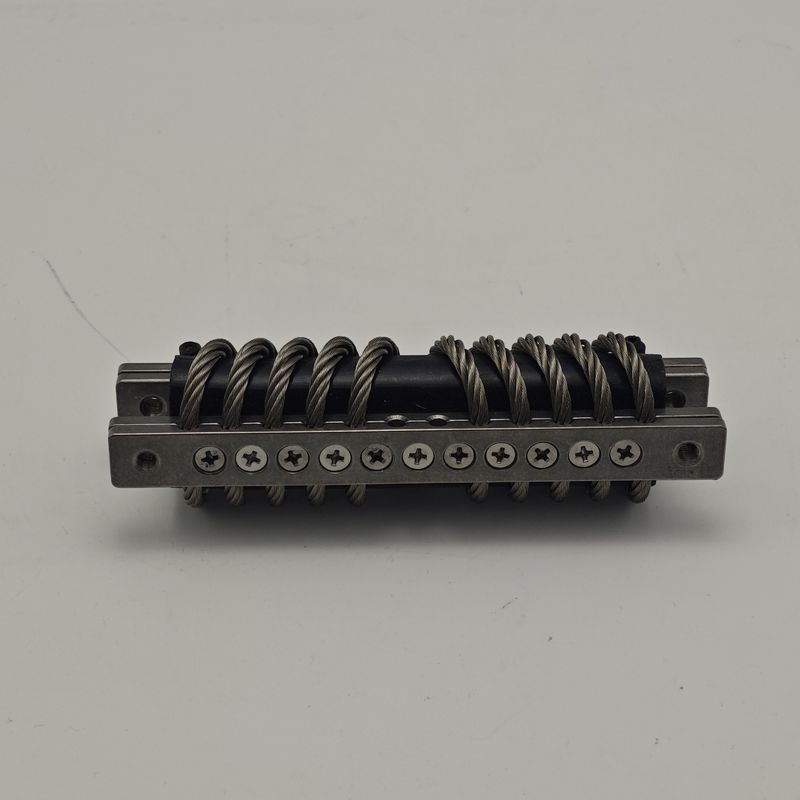

Name: Customizable GX-60A(N) Wire Rope Vibration Isolator with Good Thermal Shock Resistance and All-Metal Structure for Stable Operation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-60A(K)
Availability: InStock

Evde > Ürünler > Özelleştirilmiş ürünler >

Customizable GX-60A(N) Wire Rope Vibration Isolator with Good Thermal Shock Resistance and All-Metal Structure for Stable Operation

Customizable Size Vibration Isolator

Thermal Shock Resistance Shock Absorber

All-Metal Structure Wire Rope Isolator

Menşe yeri:

Çin

Marka adı:

Hoan

Model numarası:

GX-60A(K)

Bizimle İletişim

Teklif Et

Customizable GX-60A(N) Wire Rope Vibration Isolator with Good Thermal Shock Resistance and All-Metal Structure for Stable Operation

Ürün Ayrıntıları

Pazarlama:

Avrupa ve Amerika pazarları

Boyut:

Özelleştirilebilir

Şekil:

Özelleştirilmiş, Özelleştirilmiş Olmayan

Baskı:

Evet

Özel örnekler:

Talep üzerine mevcut

Termal şok direnci:

İyi termal şok direnci

Uzunluk:

113m

Malzeme:

Çeşitli malzemeler mevcut

Üretim süresi:

Özelleştirmenin miktarına ve karmaşıklığına bağlıdır

Özelleştirilmiş:

Evet

Nakliye:

Deniz yoluyla

Nakliye süresi:

Nakliye yöntemine ve hedefe bağlıdır

Servis Sıcaklığı:

1000 ℃ -1800 ℃

Vurgulamak:

Customizable Size Vibration Isolator

Thermal Shock Resistance Shock Absorber

All-Metal Structure Wire Rope Isolator

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

İlişkili Ürünler

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

En İyi Fiyatı Alın

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

En İyi Fiyatı Alın

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

En İyi Fiyatı Alın

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

En İyi Fiyatı Alın

Bizimle İletişim

86-29-88292913

Şimdi iletişime geçin

Ürün Tanımı

Customized Products The Ultimate Solution for Vibration and Noise Reduction GX-60AN Wire Rope Vibration Isolators

GX-N Series

Superior Protection, Stable Operation - Exploring Xi'an Hoan Microwave's GX-N Series Wire Rope Vibration Isolators

In the world of precision instruments, high-end equipment, and sensitive electronic devices, even tiny vibrations pose potential threats. Xi'an Hoan Microwave Co., Ltd., a leader in domestic vibration and noise reduction, deeply understands this challenge and has launched its flagship product - the GX-N Series wire rope vibration isolators. This product is more than just a component; it is a "guardian" for the stable operation of your critical equipment.

The core of the GX-N Series lies in its ingenious design. It uses high-quality stainless steel wire rope as the elastic element, formed through precision winding and curing processes. This structure endows it with superior performance unmatched by traditional rubber or spring isolators.

Excellent three-way equal stiffness vibration isolation performance for comprehensive protection from vibrations in any direction
All-metal structure with exceptional environmental adaptability, resisting extreme temperatures, oil, mold, and salt spray
Long service life that far exceeds organic material isolators, ensuring reliability for long-term deployed equipment
Military-grade production standards with strict quality control from material selection to final testing

Whether safeguarding the precision scanning of military radars or maintaining clear imaging of medical imaging equipment, the GX-N Series is a trustworthy choice. Choosing the GX-N means choosing peace of mind and durability.

Structural dimension diagram

Model Specifications

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Vibration and impact curve of GX-N series

Vibration

Impact

Technical Parameter Table

Technical Parameter	GX-10A(N)	GX-20A(N)	GX-30A(N)	GX-40A(N)	GX-50A(N)	GX-60A(N)
Pz Nominal Load(N)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95
Working Temperature	-55～+120
Shock(Ks)	30g/6ms
Peak Response G	≤3.5km/s2
Vibration (Kv)	Accord with National Military Standard GJB150-16
